Toggle Switch

Toggle provide users with different selection and activation tools.

install	yarn add @clayui/form
version	3.122.0

Stable 3.122.0 View in Lexicon CHANGELOG

Example
Behavioral
- Checkbox
- Radio
Disabled
Composable
- With Text
- With Icons
Extending Toggles

Example

Code Sample (expand to see it)

<label class="toggle-switch">
	<span class="toggle-switch-check-bar">
		<input class="toggle-switch-check" type="checkbox" />
		<span aria-hidden="true" class="toggle-switch-bar">
			<span class="toggle-switch-handle"></span>
		</span>
	</span>
</label>
<label class="toggle-switch">
	<span class="toggle-switch-check-bar">
		<input class="toggle-switch-check" type="checkbox" />
		<span aria-hidden="true" class="toggle-switch-bar">
			<span
				class="toggle-switch-handle"
				data-label-off=""
				data-label-on="LIVE"
			>
				<span class="button-icon button-icon-on toggle-switch-icon">
					<svg
						class="lexicon-icon lexicon-icon-live"
						focusable="false"
						role="presentation"
					>
						<use href="/images/icons/icons.svg#live"></use>
					</svg>
				</span>
				<span class="button-icon button-icon-off toggle-switch-icon">
					<svg
						class="lexicon-icon lexicon-icon-staging"
						focusable="false"
						role="presentation"
					>
						<use href="/images/icons/icons.svg#staging"></use>
					</svg>
				</span>
			</span>
		</span>
	</span>
</label>

Behavioral

You may want the Toggle Switch to behave with a Radio or Checkbox but have the appearance of a switch.

Checkbox

Code Sample (expand to see it)

<label class="toggle-switch">
	<span class="toggle-switch-check-bar">
		<input class="toggle-switch-check" type="checkbox" />
		<span aria-hidden="true" class="toggle-switch-bar">
			<span class="toggle-switch-handle"></span>
		</span>
	</span>
</label>

Radio

Code Sample (expand to see it)

<label class="toggle-switch">
	<span class="toggle-switch-check-bar">
		<input
			class="toggle-switch-check"
			name="toggleSwitchRadio1"
			type="radio"
			value="option1"
		/>
		<span aria-hidden="true" class="toggle-switch-bar">
			<span class="toggle-switch-handle"></span>
		</span>
	</span>
</label>
<label class="toggle-switch">
	<span class="toggle-switch-check-bar">
		<input
			class="toggle-switch-check"
			name="toggleSwitchRadio1"
			type="radio"
			value="option2"
		/>
		<span aria-hidden="true" class="toggle-switch-bar">
			<span class="toggle-switch-handle"></span>
		</span>
	</span>
</label>
<label class="toggle-switch">
	<span class="toggle-switch-check-bar">
		<input
			class="toggle-switch-check"
			name="toggleSwitchRadio1"
			type="radio"
			value="option3"
		/>
		<span aria-hidden="true" class="toggle-switch-bar">
			<span class="toggle-switch-handle"></span>
		</span>
	</span>
</label>

Disabled

Code Sample (expand to see it)

<label class="toggle-switch">
	<span class="toggle-switch-check-bar">
		<input disabled class="toggle-switch-check" type="checkbox" />
		<span aria-hidden="true" class="toggle-switch-bar">
			<span class="toggle-switch-handle"></span>
		</span>
	</span>
</label>
<label class="toggle-switch">
	<span class="toggle-switch-check-bar">
		<input
			disabled
			checked
			class="toggle-switch-check"
			name="toggleSwitchRadio1"
			type="radio"
			value="option1"
		/>
		<span aria-hidden="true" class="toggle-switch-bar">
			<span class="toggle-switch-handle"></span>
		</span>
	</span>
</label>

Composable

With Text

You can display additional text with the toggle switch by adding the .toggle-switch-text class to the text element. Use the .toggle-switch-text-left and .toggle-switch-text-right classes to position the text on the left and right side of the toggle switch, respectively.

Adding Required Text Required *

Required Text on Right Required *

Required Text on Left Required *

The Kitchen Sink Top Text Error Required * Bottom Text

Code Sample (expand to see it)

<label class="toggle-switch">
	<span class="toggle-switch-label">Adding Required Text</span>
	<span class="toggle-switch-text">Required *</span>
	<span class="toggle-switch-check-bar">
		<input class="toggle-switch-check" type="checkbox" />
		<span aria-hidden="true" class="toggle-switch-bar">
			<span
				class="toggle-switch-handle"
				data-label-off=""
				data-label-on="ON"
			>
			</span>
		</span>
	</span>
</label>
<label class="toggle-switch">
	<span class="toggle-switch-label">Adding Required Text</span>
	<span class="toggle-switch-check-bar">
		<input class="toggle-switch-check" type="checkbox" />
		<span aria-hidden="true" class="toggle-switch-bar">
			<span
				class="toggle-switch-handle"
				data-label-off=""
				data-label-on="ON"
			>
			</span>
		</span>
	</span>
	<span class="toggle-switch-text">Required *</span>
</label>
<label class="toggle-switch">
	<span class="toggle-switch-label">Required Text on Right</span>
	<span class="toggle-switch-check-bar">
		<input class="toggle-switch-check" type="checkbox" />
		<span aria-hidden="true" class="toggle-switch-bar">
			<span
				class="toggle-switch-handle"
				data-label-off=""
				data-label-on="ON"
			>
			</span>
		</span>
	</span>
	<span class="toggle-switch-text toggle-switch-text-right">Required *</span>
</label>
<label class="toggle-switch">
	<span class="toggle-switch-label">Required Text on Left</span>
	<span class="toggle-switch-text toggle-switch-text-left">Required *</span>
	<span class="toggle-switch-check-bar">
		<input class="toggle-switch-check" type="checkbox" />
		<span aria-hidden="true" class="toggle-switch-bar">
			<span
				class="toggle-switch-handle"
				data-label-off=""
				data-label-on="ON"
			>
			</span>
		</span>
	</span>
</label>
<label class="toggle-switch">
	<span class="toggle-switch-label">The Kitchen Sink</span>
	<span class="toggle-switch-text">Top Text</span>
	<span class="toggle-switch-text toggle-switch-text-left">Error</span>
	<span class="toggle-switch-check-bar">
		<input class="toggle-switch-check" type="checkbox" />
		<span aria-hidden="true" class="toggle-switch-bar">
			<span
				class="toggle-switch-handle"
				data-label-off="OFF"
				data-label-on="ON"
			>
			</span>
		</span>
	</span>
	<span class="toggle-switch-text toggle-switch-text-right">Required *</span>
	<span class="toggle-switch-text">Bottom Text</span>
</label>

With Icons

Add <span class="button-icon button-icon-on icon-volume-up toggle-switch-icon"/> to add an icon to the switch for the on position.

Add <span class="button-icon button-icon-off icon-volume-off toggle-switch-icon"/> to add an icon to the switch for the off position.

Toggle Switch with data-label-on

Toggle Switch with data-label on and data-label-off

Alternatively, you can add <span class="icon-ok toggle-switch-icon toggle-switch-icon-on"/> to add an icon to the switch for the on position.

Alternatively, you can add <span class="icon-remove toggle-switch-icon toggle-switch-icon-off"/> to add an icon to the switch for the off position.

Code Sample (expand to see it)

<label class="toggle-switch">
	<span class="toggle-switch-check-bar">
		<input class="toggle-switch-check" type="checkbox" />
		<span aria-hidden="true" class="toggle-switch-bar">
			<span class="toggle-switch-handle">
				<span class="toggle-switch-icon toggle-switch-icon-on">
					<svg
						class="lexicon-icon lexicon-icon-check"
						focusable="false"
						role="presentation"
					>
						<use href="/images/icons/icons.svg#check" />
					</svg>
				</span>
				<span class="toggle-switch-icon toggle-switch-icon-off">
					<svg
						class="lexicon-icon lexicon-icon-times"
						focusable="false"
						role="presentation"
					>
						<use href="/images/icons/icons.svg#times" />
					</svg>
				</span>
			</span>
		</span>
	</span>
</label>

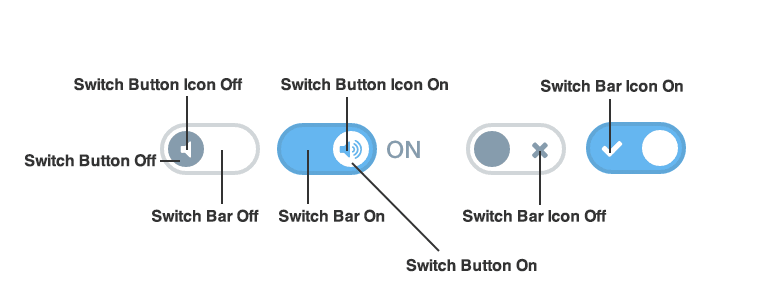

Extending Toggles

This section explains how to customize toggles. Use at your own risk.

Customize the toggle-switch button in the off position with .toggle-switch-check:empty ~ .toggle-switch-bar:after {}.
Customize the toggle-switch button icon in the off position with .toggle-switch-check:empty ~ .toggle-switch-bar .toggle-switch-icon.button-icon {}.
Customize the toggle-switch bar in the off position with .toggle-switch-check:empty ~ .toggle-switch-bar:before {}.
Customize the toggle-switch bar icon in the off position with .toggle-switch-check:empty ~ .toggle-switch-bar .toggle-switch-icon-off {}.
Customize the toggle-switch button in the on position with .toggle-switch-check:checked ~ .toggle-switch-bar:after {}.
Customize the toggle-switch button icon in the on position with .toggle-switch-check:checked ~ .toggle-switch-bar .toggle-switch-icon.button-icon.
Customize the toggle-switch bar in the on position with .toggle-switch-check:checked ~ .toggle-switch-bar:before {}.
Customize the toggle-switch bar icon in the on position with .toggle-switch-check:checked ~ .toggle-switch-bar .toggle-switch-icon-on {}.
